USED EMBROIDERY MACHINES AVAILABLE NOW

We have a selection of used commercial and industrial embroidery machines in stock now!

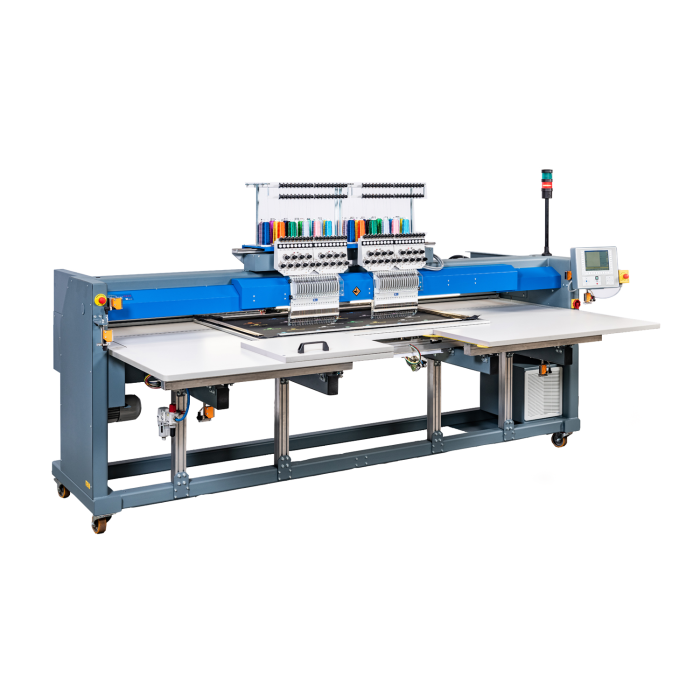

ZSK RACER 0218 D

SKU
RACER0218D

RACER - welcome to the future of productivity

With the machines of the new series RACER we set the world standard for free-arm embroidery machines. Developed and manufactured in Germany, this machine concept guarantees the shortest amortization times thanks to the highest embroidery speed. The multi-head embroidery machines impress with their extreme embroidery accuracy, flexible operating modes and proven longevity.

 MADE IN GERMANY

ZSK RACER 0218 D

Tubular multi-head embroidery machines for special requirements.

For quantity orders, quickly changing motifs and special requirements, our ZSK multi-head embroidery machine is the perfect solution.

In the areas of promotion and advertising, corporate fashion, club wear and the individualization of textiles, the RACER leave nothing to be desired.

The RACER series is suitable for the processing of many different textiles. For example, embroider garments such as t-shirts, polo shirts, jackets, trousers, caps, gloves, socks or shoes. Many other products such as leather bags, name tags, logos, VIP ribbons, aprons, borders, towels or flags can also be designed with RACER machines.

Standard vs. Wide

ZSK offers the RACER Series with S (400mm) and W (495mm) head distance. The head distance describes the distance between the centre of two adjacent heads. The wide (495mm) head spacing is ideal for bulky products and large designs. Certain models are offered as L (large) models. These models offer a 700mm embroidery field depth when operating in the border frame mode.

Head Selection

The RACER Series can be equipped with Head Selection. This feature is of use when stitching very large designs like flags, bed sheets of table clothes. The digitizing software is used to assign each head different parts of the design or in case of borders to operate all heads at the same time. The system allows automatic control of which head is sewing which design feature and switches heads on and off automatically. When a head is switched off, the take up lever is not moving. Using the Quick text with Head Selection feature allows
work wear production with same designs and different names at ease.

Barcode Operation

A barcode reader can be connected via USB to the T8-2 control unit. The reader can be used to scan barcodes and to load designs. A new feature allows the operation of T8-2 features via barcodes. A design can be loaded, turned by 180° etc. without pressing a single button. Only for starting the embroidery process, pressing of the green button is required.

Main features

  • Twin head
  • 18 needles/colours per head
  • Embroidery speed 1,000 stitches/min.
  • Extra wide embroidery area
  • Automatic thread cutter
  • Smallest tubular arm of industrial embroidery
  • Upper and lower thread guard
  • Automatic reverse embroidery function
  • Height-adjustable fabric presser
  • Contouring with lowered needle
  • Low noise
  • T8-2 control unit
  • Integrated design editor
  • Accepts all common industrial embroidery codes
  • Storage for approx. 80 million stitches
  • Automatic fault analysis
  • Windows based networking
  • Built and designed for 24/7 production
  • High value retention
  • Made in Germany

T8-2 Control terminal

  • Intuitive and logical user guidance
  • Ready for networking
  • Accepts all common industrial embroidery codes
  • Can be operated in 14 languages
  • Storage for up to 80 million stitches
  • Barcode capability

Our ZSK embroidery machines provide endless possibilities

Flat embroidery

Flat embroidery

Flat embroidery with border frame meets the highest demands in all application areas. Flat stitch offers almost endless possibilities to optimally present your motif.

Cap

Cap

The cap extension allows you to efficiently implement your ideas in the capstick area and thus the production of individual caps in small series.

Shoes

Shoes

Embroidering a sports shoe with its name, the name of your favourite team or your favourite player makes it a unique and very personal object.

Name Badges

Name Badges

With the help of the stencil template frame, name badges can be created efficiently, through simple handling and with little effort with different or even the same names.

Shirt Pockets

Shirt Pockets

The embroidery of shirt pockets with personal initials, a company logo or fashionable application individualizes the garment and is an expression of personality or corporate identity.

Tubular

Tubular

Embroider on most standard garments and textiles with the Premium Allied Grid-Lock plastic tubular frames, available in various sizes.

HoopMaster Magnetic

HoopMaster Magnetic

HoopMaster Magnetic frames use strong magnets to clamp over difficult items such as seams, zippers, velcro and more. No need to worry about clamping anymore.

Cylinder

Cylinder

Use the cylinder frame especially for embroidering around closed parts, such as jacket sleeves, socks, gloves, bracelets etc., and to process names, logos or fashionable applications.

Sequins

Sequins

With unique precision and an outstanding 1,000 stitches per minute you not only embroider sequins in different sizes, but also rhinestones to the most beautiful designs.

Beads/pearls

Beads/pearls

With this latest development, you can now also expand the possibilities with pearl embroidery and increase the appearance of your designs even more.

Cording

Cording

Vary not only with colors, but also with cords in different strengths and structures. Give your patterns an exciting look and feel.

Boring

Boring

Using a knife, a small hole is automatically cut, which allows the needle and thread to be enlarged and repackaged, thus increasing the value of your designs.

Technical Data - Machine

Heads 2
Needles 18
Head Distance [mm] 550
Max. Stitches Tubular / Flat [mm] -
Max. Stitches Cap [mm] -
Width [mm] 3380
Depth [mm] 1840
Height [mm] 1765
Power Supply [V] 230
Connected Load [Watt] 220
Net Mass [Kg] 940

Technical Data - Embroidery Field

Width [mm] 550 / 1100
Depth [mm] 700
Border Frame max. [mm] 550 / 1100 x 700
Tubular max. [mm] -
Cap 360 max. [mm] -

What do you get from us?

We are the sole UK supplier for ZSK industrial embroidery machinery and equipment, therefore we really know our stuff with these machines. All of our technicians are fully trained at ZSK headquarters in Germany, by the developers themselves.

We offer unbeatable start-up packages for every customer, with every machine. Our wealth of knowledge, gathered over more than 45 years in the industry, provides each customer with the essential information they require to become successful on their embroidery venture.

If you are unsure of which machine is right for you, our friendly sales team are on hand to discuss your requirements, and offer the perfect machine to fulfil your needs. We will never intentionally sell you a machine that is not suitable for your requirements.

Free delivery, installation and training

We offer free delivery, installation and training on all of our machines. Our qualified technicians will aim to arrive with you in the morning with your new machine, install the machine in your desired location, and complete a full training course with up to a recommended amount of four persons.

Our technicians provide hands-on-training, which we believe is the most successful method of training, in the full operations of the machine, general maintenance of the machine and anything else you need to know to get you up and running. Our technicians will never leave you without your full confidence in running the machine, whether this happens after two hours or eight hours.

Nationwide

We offer our services nationwide at no extra charge! Our head office is based in Leeds, West Yorkshire. We also have a technician in Paisley, Scotland, and another technician based in London.

As we are spread across the UK Mainland, we guarantee that we will be able to get to you quicker than other competitors, no matter where you are based.

Warranty and support

All of our ZSK machines come with a 24 month on-site warranty. We are sure you won't need us in this time, however in case you do, our technicians will get to you as quickly as possible to get you back up and running. We offer telephone support with our technicians, who will always aim to get any problems fixed over the phone in the first instance, to prevent any unnecessary down time in your production.

Payment and trading in

We offer flexible business leasing finance packages, tailored to suit you, over two, three, four or five years, whether you are a new start business or an established business for over three years.

See our finance calculator tab to work out what this machine would cost you.

We also offer guaranteed buy-back and part exchange on all machines bought from us. If you find that your original machine is no longer fulfilling your production requirements, we will happily take the machine as part exchange against another machine.
