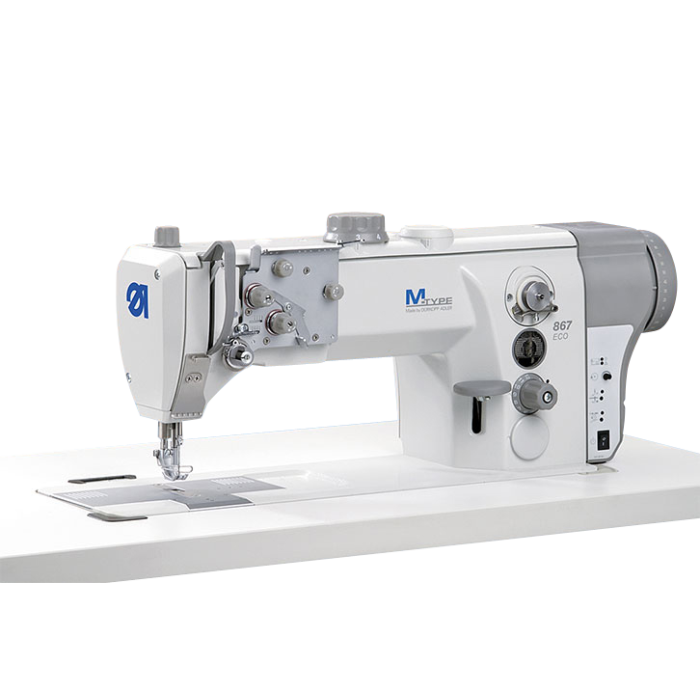

Durkopp Adler 867-190040-M

SKU
DA867-190040-M

M-TYPE 867-M ECO - with XXL hook

Field of application:

Universal sewing operations in the field of medium-heavy-duty applications



PRICE MATCH GUARANTEE!

We will match any like-for-like quote.



Durkopp Adler 867-190040-M

M-TYPE 867-M ECO - with XXL hook

Field of application:

Universal sewing operations in the field of medium-heavy-duty applications

Performance features:

  • Max. stitch length 12.0 mm
  • Thread sizes up to max. Tkt. 10/3
  • Max. sewing speed 3400 stitches/min

Overview:

  • Integrated direct drive with "DAC eco M-TYPE" control
  • The powerful and effective feeding system with bottom feed, needle feed, and alternating top feed guarantees trouble-free and displacement-free material feed
  • The extremely high sewing foot lift up to 20mm facilitates the insertion and removal of bulky work-pieces
  • The high tip feed stroke up to 9mm enables safe sewing of materials with different heights
  • Excellent view of the sewing area
  • Increased productivity due to the XXL hook (32mm, 70% higher bobbin capacity in comparison with a standard hook of 26mm)
  • Complete range of sewing equipment, attachments, and optional equipment e.g. optimum equipment for nearly all sewing operations
  • Also available with L-Hook (26mm) (867-1900250-M)





667-180010

667-180030

867-190020-M

867190040-M

867-290020-M

867-290040-M

867-392040-M (LG)

Stitch length

9 9 12 12 12 12 12

Stitches/min.

3000 3000 3800 3400 3400 3400 3000

Sewing Material

Medium Heavy - Heavy Medium Heavy - Heavy Medium Heavy - Heavy Medium Heavy - Heavy Medium Heavy - Heavy Medium Heavy - Heavy Medium Heavy - Heavy

Single needle

Yes Yes Yes Yes     Yes

Twin needle [max. needle distance mm.]

        Yes [4-60] Yes [4-60]

Lockstitch (301)

Yes Yes Yes Yes Yes Yes Yes

Horizontal hook, large (L, Ø 26 mm)

Yes

Horizontal hook, extra large (XXL, Ø 32 mm)

  Yes

Vertical hook, large (L, Ø 26 mm)

    Yes

Yes



Vertical hook, extra large (XXL, Ø 32 mm)



Yes



Yes

Yes

Hook to the left of the needle



Yes

Bottom feed, needle feed and alternating foot top feed

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Moving binder



Yes

Seam backtacking

Manual

Manual

Manual

Manual

Manual

Manual

Manual

Sewing foot lift, mechanical, adjusted by knee

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Sewing foot lift, automatic

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Stroke of the alternating sewing feet

9

9

9

9

9

9

9

Foot stroke adjustable by dial

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Clearance when Sewing/Lifting [A = Sewing max. mm / B = Lifting max. mm]

A=10 / B=20

A=10 / B=20

A=10 / B=20

A=10 / B=20

A=10 / B=20

A=10 / B=20

A=10 / B=20

Additional thread tension

Manual

Manual

Manual

Manual

Manual

Manual

Manual

Integrated LED sewing light with dimmer

Optional

Optional

Optional

Optional

Optional

Optional

Optional

DA-sewing drive

Yes

Yes



Integrated DA-direct drive



Yes

Yes

Yes

Yes

Yes

Available without DA drive / available with separate motor packages

Optional

Optional

Optional

Optional

Optional

Optional

Optional

Long arm versions available as a standard



C=700 / D=125

C=700 / D=125

C=700 / D=125

C=700 / D=125


  667-180010 667-180030 867-190020-M 867190040-M 867-290020-M 867-290040-M 867-392040-M (LG)

Needle system

134-35

134-35

134-35

134-35

134-35

134-35

134-35

Needle size [Nm. max.]

80-150

100-180

90-180

90-180

90-180

90-180

90-180

Synthetic [Tkt. max.] 15/3 10/3 10/3 10/3 10/3 10/3 10/3
Dimensions (Length, Width, Height) [mm]

1060 x 500 x 1700

1060 x 500 x 1700

1060 x 500 x 1700 1060 x 500 x 1700 1060 x 500 x 1700 1060 x 500 x 1700 1060 x 500 x 1700
Flat bed machine with clearance [mm]

C= 335 / D= 125

C= 335 / D= 125

C= 335 / D= 125 C= 335 / D= 125 C= 335 / D= 125 C= 335 / D= 125 C= 335 / D= 125
Integrated control DAC eco M-TYPE     Yes Yes Yes Yes Yes

Nominal voltage [V], [Hz]

1x230V, 50/60 Hz

1x230V, 50/60 Hz

1x230V, 50/60 Hz

1x230V, 50/60 Hz

1x230V, 50/60 Hz

1x230V, 50/60 Hz

1x230V, 50/60 Hz

Power consumption [kVA max.]

1

1

1

1

1

1

1

Rated power [W. max.]

375 W

375 W

375 W

375 W

375 W

375 W

375 W

Weight, sewing head

50-54

50-54

55-57

55-57

55-57

55-57

55-59
