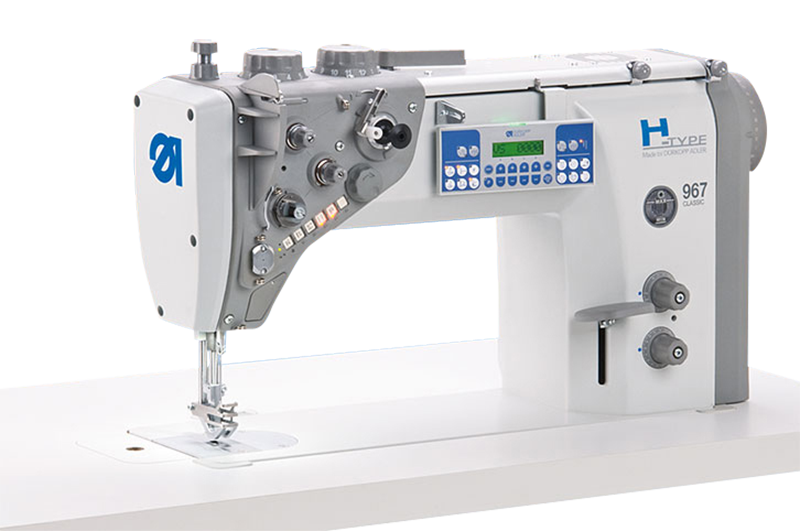

Durkopp Adler 967

Heavy Duty Lockstitch Flatbed

A robust H-TYPE flat-bed single-needle lockstitch machine engineered for extreme heavy-duty sewing applications across technical textiles, leather goods and upholstery. The 967 series combines powerful feed, high penetration force and a large XL shuttle hook for exceptional performance on thick materials and bulky workpieces.

Heavy-duty lockstitch performance: Excellent stitch pattern and consistently tight seams, even with extremely thick threads up to Nm 5/3.

High productivity: XL barrel shuttle hook with ~70 % greater bobbin capacity boosts run lengths and reduces thread stops.

Generous stitch range: Maximum stitch length up to 15 mm for assembly and decorative seams.

Bulky material handling: Up to 30 mm sewing foot lift and large clearance under the arm, facilitating the feeding/removal of oversized workpieces.

Advanced feed system: Powerful material feed and alternating top feed up to 12 mm overcome high ply differences.

Industry 4.0-ready control: Integrated sewing drive with DAC classic control and multifunction panel (OP1000).

Ergonomic features: Electronic needle positioning (“Jog-Dial”), electropneumatic foot lift, and integrated LED sewing light.

Variants available: PURE, ECO and CLASSIC configurations with options such as automatic backtacking, motor-driven bobbin winder, and long-arm versions.

Key Features & Benefits

High productivity due to the XL barrel shuttle hook - 70% larger bobbin capacity.

Excellent stitch pattern and constantly tight stitches, even when sewing with extremely thick threads up to NM 5/3.

Up to 15mm long stitches for assembly and decorative seams.

The extremely high sewing foot lift up to 30mm facilitates the feeding and removal of bulky workpieces.

The alternating top feed up to 12mm allows the safe climbing over differently high material plies.

The large clearance, 420mm (longarm version 1000mm) wide and 225mm high, facilitates the handling of large area workpieces.

Sewing drive with networkable DAC classic control, including operating panel OP1000 - industry 4.0 "ready".

Electronic needle positioning ("Jog-Dial") with the functionality of an electronic hand wheel.

Max. sewing speed 1250 stitches/min.

Integrated sewing drive for maximum penetration force.

A robust thread trimmer guarantees a safe and clean cutting of extremely thick sewing threads.

The extremely high sewing foot lift up to 25 mm facilitates the feeding and removing of bulky workpieces

Examples of use

Cargo belt

Assembly seams in technical textiles

Perfect topstitching seams in the leather goods sector

Stitching through large area and bulky workpieces

Specification

Features

= Standard = Optional

	967-100080 PURE	967-100180	967-100180-100	967-100382	967-100382-100
Stitch length [mm] max.	15	15	15	15	15
Stitches/min.	800	1000	1000	1250	1000
Sewing Material	Medium Heavy - Heavy	Medium Heavy - Heavy	Medium Heavy - Heavy	Medium Heavy - Heavy	Medium Heavy - Heavy
Single needle
Lockstitch (301)
Long Arm
Barrel shuttle hook, extra large (XL)
Bottom feed, needle feed and alternating foot top feed
Thread trimmer [mm] max.				40	40
Seam backtacking
Sewing foot lift	Manual	Automatic	Automatic	Automatic	Automatic
Thread nipper for a neat seam beginning
Stroke of the alternating sewing feet [mm] max.	12	12	12	12	12
Integrated 2nd quick stroke adjustment
Integrated 2nd stitch length adjustment
Clearance when Sewing/Lifting [A=sewing, B=Lifting] [mm] max.	A=26* / B=30	A=26* / B=30	A=26* / B=30	A=26* / B=30	A=26* / B=30
Additional thread tension				Automatic	Automatic
Electronic needle positioning
Motor-driven bobbin winder
Program control, operating panel OP1000
Integrated LED sewing light with dimmer
Oil maintenance indicator
DA-sewing drive
Available without DA drive / available with separate motor packages
Long arm versions available as a standard [C=clearance, D=depth] [mm] max.		C=1000 / D=225		C=1000 / D=225

* Depending on foot stroke

** Approx. length of remaining thread

Technical

	967-100080 PURE	967-100180	967-100180-100	967-100382	967-100382-100
Air requirement per stroke / Air pressure		0.7 / 6	0.7 / 6	0.7 / 6	0.7 / 6
Needle system	794/1000H	794/1000H	794/1000H	794/1000H	794/1000H
Needle size	120-300	120-300	120-300	120-300	120-300
Thread Type* ** [Tkt.] max.	5/3	5/3	5/3	5/3	5/3
Braided Yarn	0.8-1.6	0.8-1.6	0.8-1.6	0.8-1.6	0.8-1.6
Dimensions (Length x Width x Height) [mm]	1200 x 600 x 1700	1200 x 600 x 1700	1900 x 600 x 1700	1200 x 600 x 1700	1900 x 600 x 1700
Flatbed machine with clearance [C=clearance, D=depth] [mm] max.	C=420 / D=225	C=420 / D=225	C=1000 / D=225	C=420 / D=225	C=1000 / D=225
Nominal voltage [V], [Hz]	1x230V, 50/60 Hz*	1x230V, 50/60 Hz	1x230V, 50/60 Hz	1x230V, 50/60 Hz	1x230V, 50/60 Hz
Rated power [W] max.	375 W*	375 W	375 W	375 W	375 W
Weight, sewing head [Kg]	90	90	90	90	145

* Max. thread size upper thread: Tkt. 10/3, max. thread size bobbin thread: Tkt. 20/3
** Max. thread size upper thread: Tkt. 15/3, max. thread size bobbin thread: Tkt. 40/3
