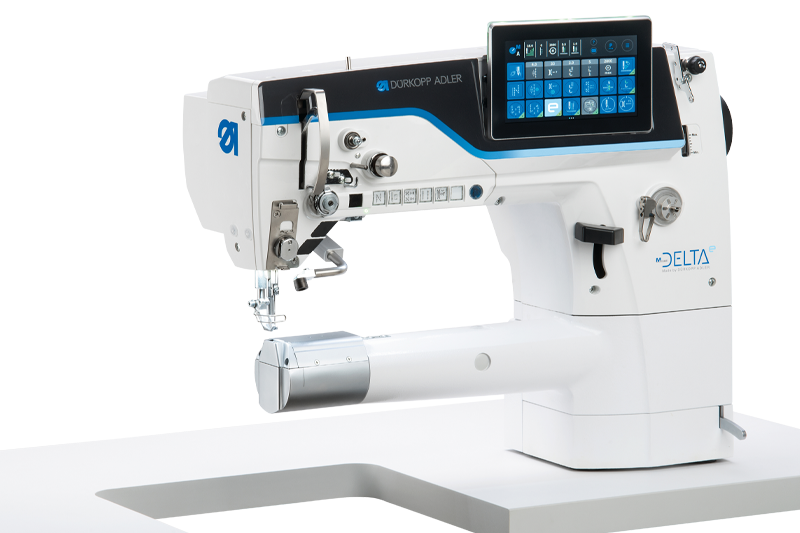

Durkopp Adler D869 e-con

Medium-Heavy Duty Cylinder Arm

A high-performance DELTA e-con cylinder arm sewing machine designed for demanding medium- to heavy-duty applications. The D869 e-con combines Dürkopp Adler’s proven cylinder arm platform with fully digitalised DELTA drive technology, delivering powerful penetration, precise stitch formation and energy-efficient operation for complex, three-dimensional workpieces.

DELTA e-con drive technology: Fully digitalised, energy-efficient drive concept delivering high performance with reduced power consumption.

Cylinder arm design: Slim arm geometry provides excellent access for tubular, pre-assembled and three-dimensional products.

Medium- to heavy-duty capability: High penetration power and optimised kinematics ensure consistent stitch quality on thick and dense materials.

Digitally programmable machine settings: Electronic adjustment of sewing parameters such as stitch length, foot stroke and thread tension for reproducible results.

Excellent material handling: Stable feeding and high sewing reliability across varying material thicknesses.

Intuitive operator control: Modern DELTA control panel enables fast setup, clear operation and reduced training time.

Cylinder design: Narrow arm geometry improves accessibility for tubular or hard-to-reach workpieces.

Industry 4.0 ready: Designed for connected production environments with data transparency and future automation in mind.

Sustainable production: Lower energy consumption and optimised processes help reduce operating costs and environmental impact.

Key Features & Benefits

E-CON – efficient, energy-saving and sustainable sewing

Perfect sewing results thanks to optimised sewing kinematics – even in demanding materials.

Intuitive operation and up to 30% shorter teach-in times due to the multi-touch control panel.

Automatic optimisation of sewing parameters during the sewing process via integrated Material Thickness Detection (MTD).

Efficiency and reproducibility using program-supported sewing and electronic control elements.

Flexible and future-oriented – the digital sewing system for the future.

Outstanding performance parameters - Up to 2800 stitches/minute (subclass-dependent), optimised working area due to increased clearance of 350 mm x 128 mm and simultaneously reduced machine footprint.

The DELTA platform – a wide range of models, equipment and fields of application.

Personalized to your individual needs - Starting with the right height of the table top, your individual control panel configuration or your user profile that gives you access to exactly those areas that are relevant and useful for you.

Solid cast core in an innovative and service-friendly design.

Always on the Safe Side – with DELTA Poka Yoke Equipment.

Outstanding performance in the standard package

Programmable height-adjustable work tables (optional).

The varied range of sewing equipment, attachments, and optional equipment guarantees an optimal solution for nearly all sewing operations.

Always on the Safe Side – with DELTA Poka Yoke Equipment.

Outstanding performance in the standard package

Examples of use

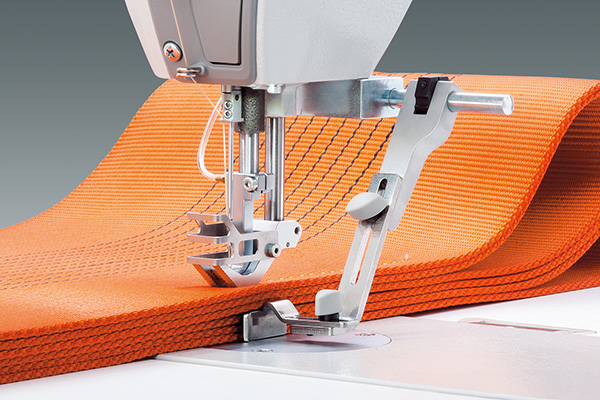

Cargo belt

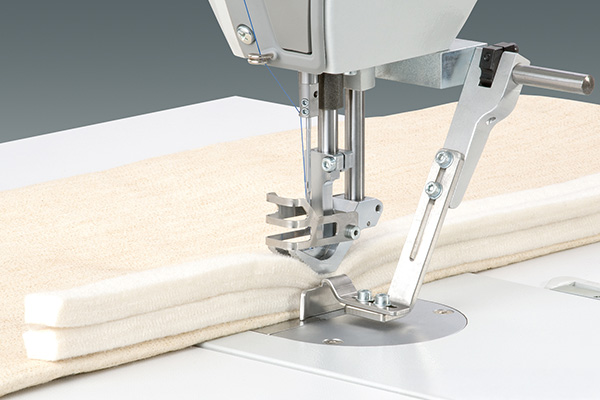

Assembly seams in technical textiles

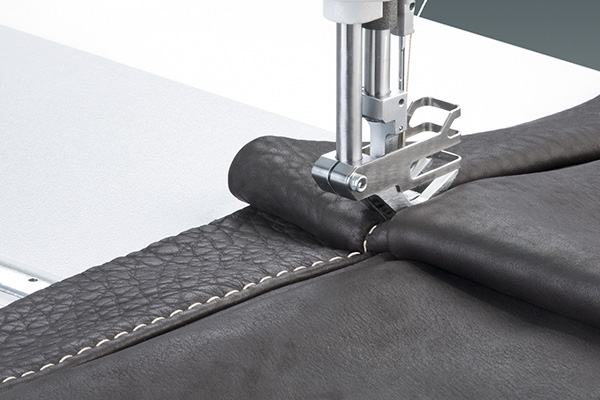

Perfect topstitching seams in the leather goods sector

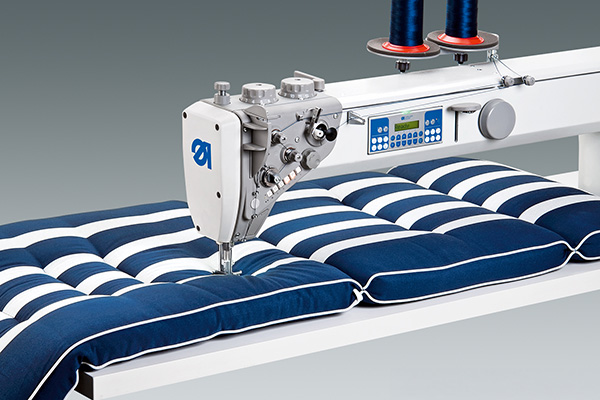

Stitching through large area and bulky workpieces

Specification

Features

= Standard = Optional

	D869-180922-01	D869-280922-01
Stitch length [mm] max.	9	9
Stitches/min.	2800	2800
Sewing Material	Medium Heavy - Heavy	Medium Heavy - Heavy
Single needle
Twin needle
Lockstitch (301)
Vertical hook, large (L, Ø 26 mm)
Bottom feed, needle feed and alternating foot top feed
Automatic thread trimmer [mm] max.	15	15
Thread nipper for a neat seam beginning
MTD - Automatic material thickness detection
Stepper motor-driven stitch length adjustment with simultaneous speed limitation according to the feeding length
Stroke of the alternating sewing feet [mm] max.	9	9
Stepper motor-driven foot stroke and quick stroke adjustment
Clearance when Sewing/Lifting [A=sewing / B=lifting] [mm] max.	A=10 / B=16	A=10 / B=16
Stepper motor-driven sewing foot lift and sewing foot pressure
Stepper motor-driven, programmable thread tension
Electronic needle positioning
Stepper motor-driven electronic backtack
Motor-driven bobbin winder
Storage capacity for setups/seam programs	999	999
Individual programmable complex seam sections	30	30
Program control, operating panel Commander DELTA
Underarm LED lighting with dimmer
Integrated LED sewing light with dimmer
Oil maintenance indicator
DA-sewing drive
e-con

* Depending on foot stroke

** Approx. length of remaining thread

Technical

	D869-180922-01	D869-280922-01
Needle system	134-35	134-35
Needle size	100-150	100-150
Thread Type* ** [Tkt.] max.	80/3 - 15/3	80/3 - 15/3
Dimensions (Length x Width x Height) [mm]	1200 x 550 x 1700	1200 x 550 x 1700
Cylinder arm machine with clearance [C=clearance, D=depth] [mm] max.	C=350 / D=128	C=350 / D=128
Nominal voltage [V], [Hz]	1x230V, 50/60 Hz	1x230V, 50/60 Hz
Rated power [W] max.	375 W	375 W
Weight, sewing head [Kg]	56	57

* Max. thread size upper thread: Tkt. 10/3, max. thread size bobbin thread: Tkt. 20/3
** Max. thread size upper thread: Tkt. 15/3, max. thread size bobbin thread: Tkt. 40/3
