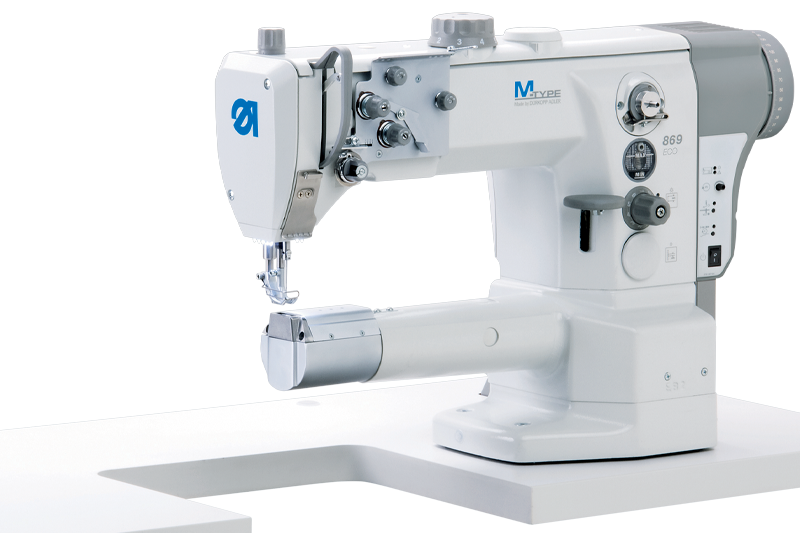

Durkopp Adler 869 ECO

M-Type Triple Feed Cylinder Arm

A robust M-TYPE ECO cylinder arm sewing machine built for medium-heavy to heavy industrial sewing tasks with triple-feed precision and flexible equipment options. The 869 series offers high material feed reliability, powerful performance parameters and a slim cylinder arm design that supports demanding three-dimensional and tubular applications such as leather goods, footwear, technical textiles and soft luggage.

Cylinder arm design: Slim arm with excellent access for tubular and angular workpieces.

Triple feed system: Bottom feed, needle feed and alternating top feed for smooth, displacement-free material transport across varying thicknesses.

ECO-level DAC control: Economical M-TYPE controller with basic functions such as needle positioning, soft start and pedal-operated single stitch.

Strong sewing performance: Designed to handle heavyweight materials and thick threads up to Nm 10/3 with consistency.

High foot lift: Easy loading and removal of bulky workpieces, improving workflow and operator comfort.

Reliable feeding: Maximum sewing foot stroke up to 9 mm and robust feed system maintains stitch quality even over uneven material.

Optional configurations: Available in single-needle and two-needle versions with large vertical or horizontal hooks.

Wide industrial use: Suited to decorative stitching, assembly seams and binding operations across leather, technical textiles and softgoods production.

Universal decorative stitching on hand-bags

Attaching decorative leather stripes to leather goods with narrow needle distance

Low-tension binding operations in bags and soft luggage due to the moving binding device

Moving the binder in the production of slippers (house shoes)

Features

= Standard    = Optional
