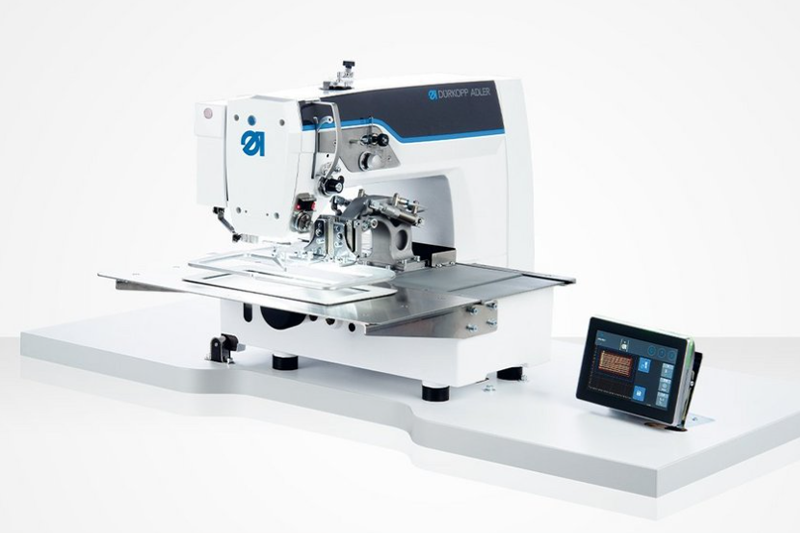

Durkopp Adler 910

CNC Small-Field Sewing Unit

A fully digitised compact CNC pattern sewing unit designed to set new standards in versatile industrial applications. The 910 combines intuitive touch-panel programming with flexible hook and field size options, making it ideal for precise seam production on technical textiles, leather goods, safety components and lighter to medium materials.

Fully digitised CNC platform: Modern control with integrated CAD for direct program creation and adjustment on the machine.

Flexible sewing field sizes: Four selectable field options to suit different part sizes and production needs.

Multiple hook choices: Three hook types (oscillating or rotary 26 mm/32 mm) for broad material compatibility.

Intuitive multi-touch interface: Touch panel operations simplify teach-in and program setup, reducing learning time.

Programmable parameters: Adjustable sewing foot height, stroke and thread tension tailored to your application.

Integrated thread monitoring: Standard thread breakage sensor with automatic stop and optional remaining thread monitor.

Industry 4.0 ready: QONDAC connectivity supports seamless integration with external systems, IoT and Wi-Fi.

Wide application range: Suitable for technical textiles, automotive components, leather goods, safety gear and light-to-medium assemblies.

Key Features & Benefits

Create sewing programs and adjust parameters directly on the innovative touch panel with an integrated CAD system.

Compatibility with clamps from other manufacturers ensures a smooth transition, and Dürkopp Adler 506 clamps can also be used with the aid of an adapter.

DA-Cad-Professional software specially developed for Dürkopp Adler to generate and edit the seam programs for the CNC-units of the DA-Group

Easy login via NFC - Use the internal user management to create users, assign them rights and facilitate identification by using the login with an NFC chip.

Three different horizontal hooks - simply choose between a horizontally oscillating hook or rotary hooks (26mm or 32mm). Conversion between the hook systems is also possible.

Adjust all seam parameters directly on the machine, such as stitch length, sewing speed, thread tension, stroke position and alternation of the foot, etc., in a matter of seconds.

Integrated thread breakage sensor with automatic sewing stop & optional remaining thread monitor

Intuitive operation and up to 30% shorter teach-in times due to multi-touch control panel

DAC flex machine control enables comprehensive connection options with external hardware

Three different thread tensions - Mechanical (MTT), electrical (ETT) or mechanical-electrical (METT), tailored to your requirements.

Commander Pro control panel - The interactive user interface ensures easy handling and allows you to be guided through digital manuals.

Seamless adaptation to your materials is made possible by the precise adjustment of the foot movement by means of programmable sewing foot height and sewing foot stroke.

Wide range of application options - The 910 is strong in many areas, whether shoes, airbags, belts, leather goods, technical textiles, jeans, ropes or many other possibilities such as sewing on labels of any material.

Personalized to your individual needs

Commander Pro control panel

Programmable sewing foot height and sewing foot stroke

Examples of use

Leather Goods

Safety-related seams in airbags and seat belts

Perfect sewing solutions for automotive interiors, for maximum safety and quality

Load and lashing straps

Specification

= Standard = Optional

	910-1510-26	910-1510-32	910-1510-CB	910-2210-26	910-2210-32	910-2210-CB	910-2516-26	910-2516-32	910-2516-CB	910-3020-26	910-3020-32	910-3020-CB
Stitch length [mm] max.	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7
Stitches/min.	2800	2800	2800	2800	2800	2800	2800	2800	2800	2800	2800	2800
Sewing Material	Medium - Medium Heavy	Medium - Medium Heavy	Medium - Medium Heavy	Medium - Medium Heavy	Medium - Medium Heavy	Medium - Medium Heavy	Medium - Medium Heavy	Medium - Medium Heavy	Medium - Medium Heavy	Medium - Medium Heavy	Medium - Medium Heavy	Medium - Medium Heavy
Sewing Field Size X/Y [mm] max.	150 x 100	150 x 100	150 x 100	220 x 100	220 x 100	220 x 100	250 x 160	250 x 160	250 x 160	300 x 200	300 x 200	300 x 200
Lockstitch (301)
Shuttle Hook
Horizontal, rotary hook, (Ø 26 mm)
Horizontal, rotary hook, (Ø 32 mm)
Thread trimmer [mm] max.	5	5	5	5	5	5	5	5	5	5	5	5
Clearance when Sewing/Lifting [A=sewing / B=lifting] [mm] max.	A = 10 / B = 22	A = 10 / B = 22	A = 10 / B = 22	A = 10 / B = 22	A = 10 / B = 22	A = 10 / B = 22	A = 10 / B = 22	A = 10 / B = 22	A = 10 / B = 22	A = 10 / B = 22	A = 10 / B = 22	A = 10 / B = 22
Programmable thread tension
Integrated LED sewing light with dimmer
Data format for seam programs	DXF	DXF	DXF	DXF	DXF	DXF	DXF	DXF	DXF	DXF	DXF	DXF

* Depending on foot stroke

** Approx. length of remaining thread

Technical

	910-1510-26	910-1510-32	910-1510-CB	910-2210-26	910-2210-32	910-2210-CB	910-2516-26	910-2516-32	910-2516-CB	910-3020-26	910-3020-32	910-3020-CB
Air requirement per stroke / Air pressure [NL] [bar.]		0.4 / 6
Needle system	134-35	134-35	134-35	134-35	134-35	134-35	134-35	134-35	134-35	134-35	134-35	134-35
Needle size [Nm]	90-180	90-180	90-180	90-130	90-180	90-180	90-130	90-180	90-180	90-130	90-180	90-180
Thread Type* ** [Tkt.] max.	80/3 - 20/3*	80/3 - 13/3*	80/3 - 13/3*	80/3 - 20/3*	80/3 - 13/3*	80/3 - 13/3*	80/3 - 20/3*	80/3 - 13/3*	80/3 - 13/3*	80/3 - 20/3*	80/3 - 13/3*	80/3 - 13/3*
Dimensions (Length x Width x Height) [mm]	590 x 1200 x 1280	590 x 1200 x 1280	590 x 1200 x 1280	590 x 1200 x 1280	590 x 1200 x 1280	590 x 1200 x 1280	810 x 1200 x 1280	810 x 1200 x 1280	810 x 1200 x 1280	810 x 1200 x 1280	810 x 1200 x 1280	810 x 1200 x 1280
Nominal voltage [V], [Hz]	230V	230V	230V	230V	230V	230V	230V	230V	230V	230V	230V	230V
Weight, complete [Kg]	150	150	150	150	150	150	215	215	215	215	215	215

* Max. thread size upper thread: Tkt. 10/3, max. thread size bobbin thread: Tkt. 20/3
** Max. thread size upper thread: Tkt. 15/3, max. thread size bobbin thread: Tkt. 40/3
