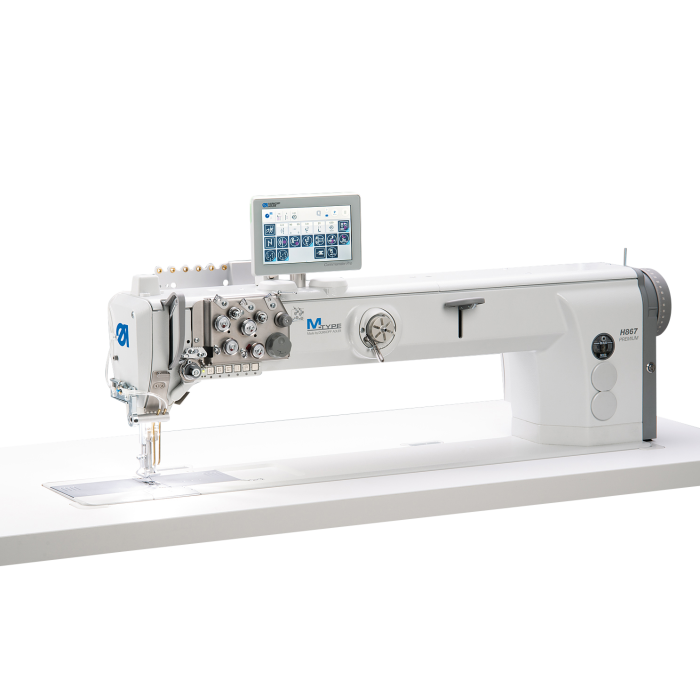

Durkopp Adler H867-290962-70 PREMIUM

H-867-M PREMIUM - Future-oriented technology for reproducible seams in heavy-weight materials

Field of application:

Reproducible sewing operations on particularly heavy sewing materials, e.g. conveyor belts, bellows, belt slings and load belts

Performance features:

• Max. stitch length 12 mm
• Max. sewing speed 1,800 stitches/min.

Overview:

• M-TYPE machine head H867-M PREMIUM with digitally programmable setting elements and ap­proved sewing technology (XXL-hook / standard thread trimmer)
• Integrated direct drive with network capable "DAC comfort" control for Industry 4.0 applications, incl. operating panel OP3000; alternatively with optional touch operating panel "Commander" - Industry 4.0 "ready"
• Digitally programmable setting elements: Stitch length, thread tension, sewing foot lift, sewing foot pressure
• Higher quality and productivity by: - Automatic adjustment of machine settings based on material thickness detection - Creation of complex seam programs - Reproducible sewing results - Full "Industry 4.0" connectivity via QONDAC • Electronic needle positioning by Jog-Dial
• No compressed air required (except for optional needle cooling)
• Machine settings (setup) or complex seam pro­ grams (max. 999)
• Machine-specific software with intuitive user inter­ face for convenient administration of sewing pa­rameters
