Durkopp Adler H867-290362-70

£0.00 £0.00

SKU

DAH867-290362-70

M-TYPE H867 CLASSIC Goldline -flatbed machine as reinforced version

Assembly and decorative seams in medium to heavy-weight workpieces

We will match any like-for-like quote.

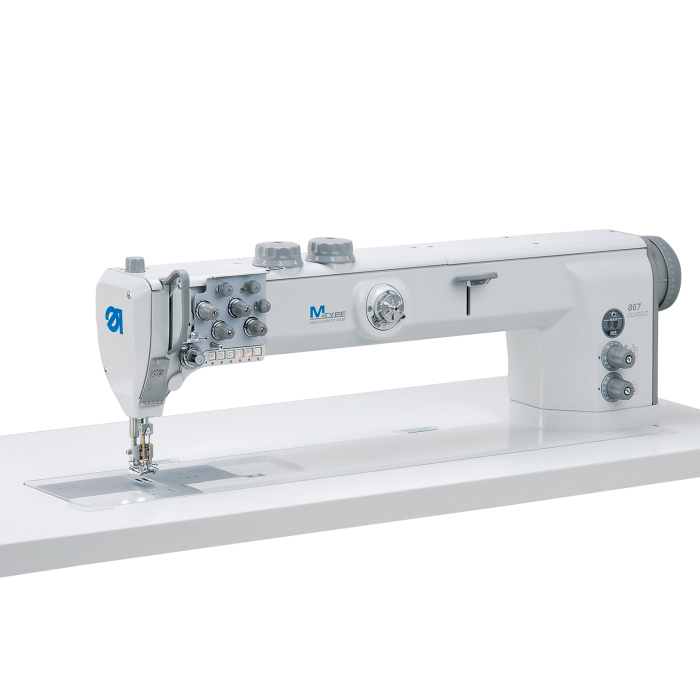

M-TYPE H867 CLASSIC Goldline Long arm - highest technology level for versatile twin needle operations as reinforced version

Field of application:

Assembly and decorative seams in medium to heavy-weight large-area workpieces

Performance features:

Max. stitch length 12.0 mm

Thread sizes up to max. Tkt. 8/3

Max. sewing speed 1800 stitches/min

Needle distances up to 90mm max.

Overview:

The large clearance (700mm wide and 157mm high) facilitates the handling of large-area workpieces

Powerful and effective feeding system with bottom feed, needle feed, and alternating top feed

Up to 12mm long stitches for standard seams and decorative topstitching

The extremely high sewing foot lift up to 25mm facilitates the feeding and removal of bulky workpieces

Optimised hook system with 3XL bobbin (40mm) for thread sizes up to Tkt. 8/3 max.

Robust thread trimmer guarantees a safe and clean cutting of extremely thick sewing threads

Sewing drive with networkable 'DAC Classic' control incl. operating panel OP1000 - industry 4.0 ready

Also available as single needle machine (H867-190362)

Also available as ECO version (single needle or twin needle H867-190060 / H867-290060)

Also available as Silverline version (single needle or twin needle H867-190162-70 / H867-290162-70)
