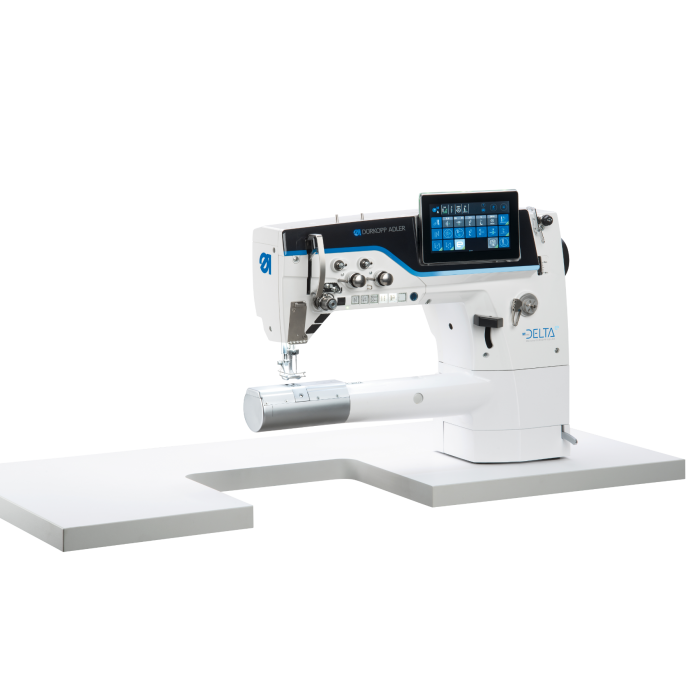

Durkopp Adler D869-280922-01 DELTA e-con

£0.00 £0.00

SKU

DAD869-280922-01

M-TYPE DELTA e-con - Reproducible twin needle seams on tubular workpieces

Reproducible twin needle functional seams and decorative seams in tubular workpieces

We will match any like-for-like quote.

M-TYPE DELTA e-con - Reproducible twin needle seams on tubular workpieces

Field of application:

Reproducible twin needle functional seams and decorative seams in tubular workpieces

Performance features:

Needle distances up to 30 mm max.

Max. stitch length 9 mm

Max. sewing speed 2,800 stitches/min.

Max. alternating sewing foot stroke 9 mm

Max. sewing foot lift 16 mm

Remaining thread length of ~ 15 mm

Overview:

e-con technology - for efficient, energy saving and sustainable sewing

Integrated material thickness detection (MTD) for the automatic optimization of sewing parameters during the sewing process

Digitally programmable setting elements: Stitch length, thread tension, top feed stroke, sewing foot lift, sewing foot pressure

Intuitive operation through the Commander Delta control panel with the possibility to make customer-specific adjustments to the user interface

Optimized working area due to enlarged clearance of 350 mm x 128 mm

Easy and precise needle positioning due to electronical handwheel

Improved sewing results due to new sewing kinematics, especially for thinner sewing materials

Connection of industrial sewing machines in production possible using QONDAC NETWORKS
