Durkopp Adler D869-180922-01 DELTA e-con

£0.00 £0.00

SKU

DAD869-180922-01

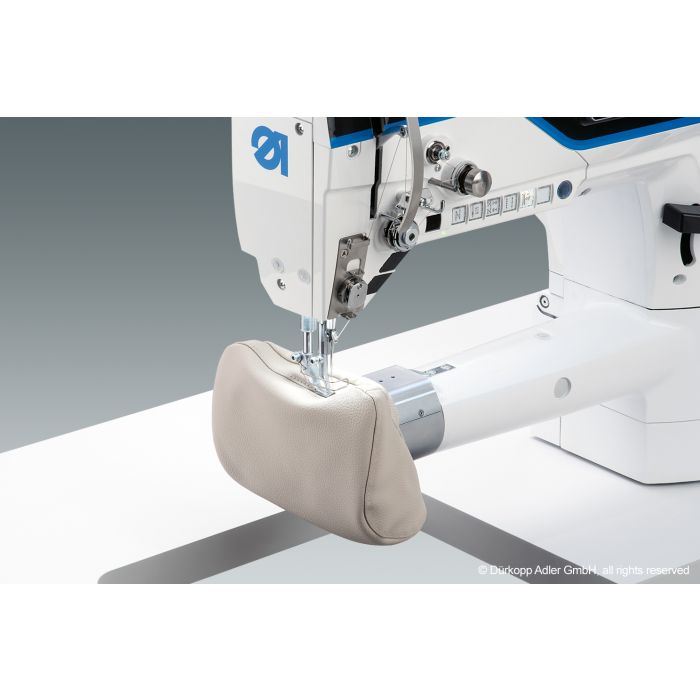

M-TYPE DELTA e-con - The single needle cylinder arm machine with vertical hook for reproducible seams on three-dimensional workpieces

Field of application:

Reproducible topstitching seams for in tubular work pieces

PRICE MATCH GUARANTEE!

We will match any like-for-like quote.

M-TYPE DELTA e-con - The single needle cylinder arm machine with vertical hook for reproducible seams on three-dimensional workpieces

Field of application:

Reproducible topstitching seams for in tubular work pieces

Performance features:

Max. stitch length 9 mm

Max. sewing speed 2,800 stitches/min.

Max. alternating sewing foot stroke 9 mm

Max. sewing foot lift 16 mm

Remaining thread length of ~ 15 mm

Overview:

e-con technology - for efficient, energy saving and sustainable sewing

Integrated material thickness detection (MTD) for the automatic optimization of sewing parameters during the sewing process

Digitally programmable setting elements: Stitch length, thread tension, top feed stroke, sewing foot lift, sewing foot pressure

Intuitive operation through the Commander Delta control panel with the possibility to make customer-specific adjustments to the user interface

Enlarged clearance of 350 mm x 128 mm

Electronically driven edge guides reduce set-up times and increase process reliability by automatically moving to the individually programmed distances and heights (optional)

Easy and precise needle positioning due to electronical handwheel

Improved sewing results due to new sewing kinematics, especially for thinner sewing materials

Connection of industrial sewing machines in production possible using QONDAC NETWORKS
