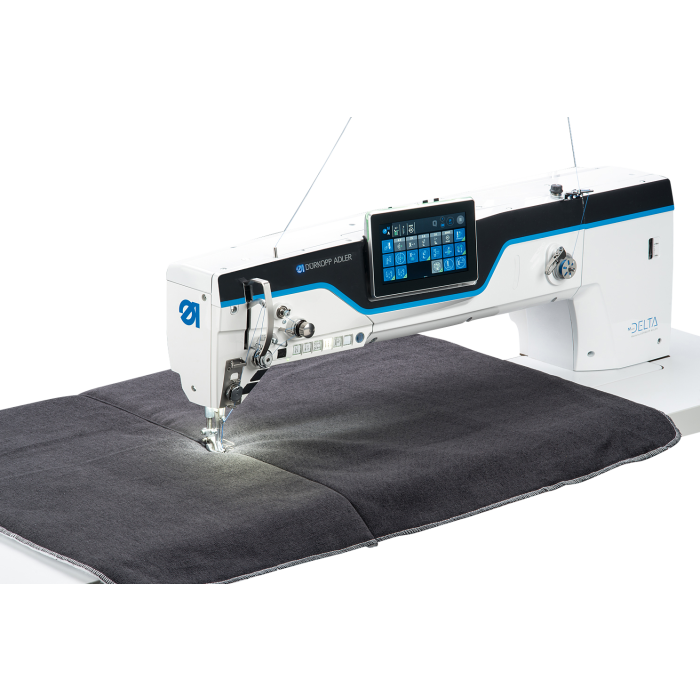

Durkopp Adler D867-190942-70-01 DELTA e-con

M-TYPE DELTA e-con long arm - for versatile single needle applications in large workpieces

Field of application:

Reproducible assembly and decorative seams in large workpieces

Performance features:

• Max. stitch length 12 mm
• Max. sewing speed 2,500 stitches/min.
• Max. alternating sewing foot stroke 9 mm
• Max. sewing foot lift 20 mm

Overview:

• e-con technology - for efficient, energy saving and sustainable sewing
• M-TYPE DELTA e-con long arm sewing head with programmable setting elements and XXL hook (32 mm) for high bobbin thread capacity
• The large clearance (700 mm wide and 128 mm high) facilitates the handling of large workpieces
• Integrated sewing motor with network capable "DAC flex control" incl. operating panel Command­er Delta ensures optimum functionality and maxi­mum ease of use for "Industry 4.0 applications"
• Machine-specific software with intuitive user inter­ face
• Graphical visualization of the progress within the seam programs
• Integrated material thickness detection (MTD) for optimization of sewing parameters during the sewing process
• Easy and precise needle positioning due to elec­tronical handwheel (scroll wheel)
• Optional with step motor driven puller
• 4 further subclass with XL- or XXL-hook in combi­nation with long or short thread trimmer available
• Extension kits with 1,000 mm clearance under the sewing head are available for all subclasses with single needle
