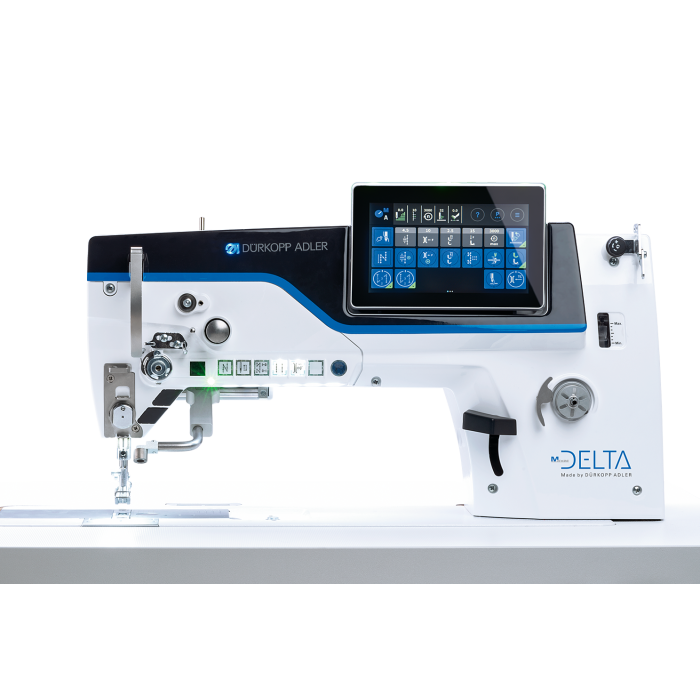

Durkopp Adler D867-190942-01 DELTA e-con

M-TYPE DELTA e-con - Innovative sewing technol­ogy for digitized production

Field of application:

Reproducible assembly and topstitching seams for medium-heavy applications

Performance features:

• Max. stitch length 12 mm
• Max. sewing speed 3,500 stitches/min.
• Max. alternating sewing foot stroke 9 mm
• Max. sewing foot lift 20 mm
• Remaining thread length of ~ 15 mm

Overview:

• e-con technology - for efficient, energy saving and sustainable sewing
• Integrated material thickness detection (MTD) for the automatic optimization of sewing parameters during the sewing process
• Intuitive operation through the Commander Delta control panel with the possibility to make customer-specific adjustments to the user interface
• Enlarged clearance of 350 x 128 mm
• High bobbin capacity due to XXL hook (32 mm)
• Reproducible handling due to electronically driven edge guides (optional)
• Prevention of rejects through optional function "Skip Stitch Detection" (SSD)
• Easy and precise needle positioning due to elec­tronical handwheel
• Improved sewing results due to new sewing kine­matics, especially for thinner sewing materials
• Connection of industrial sewing machines in pro­duction possible using QONDAC NETWORKS
• Also available with XL-hook (28 mm, D867-190922-01)
