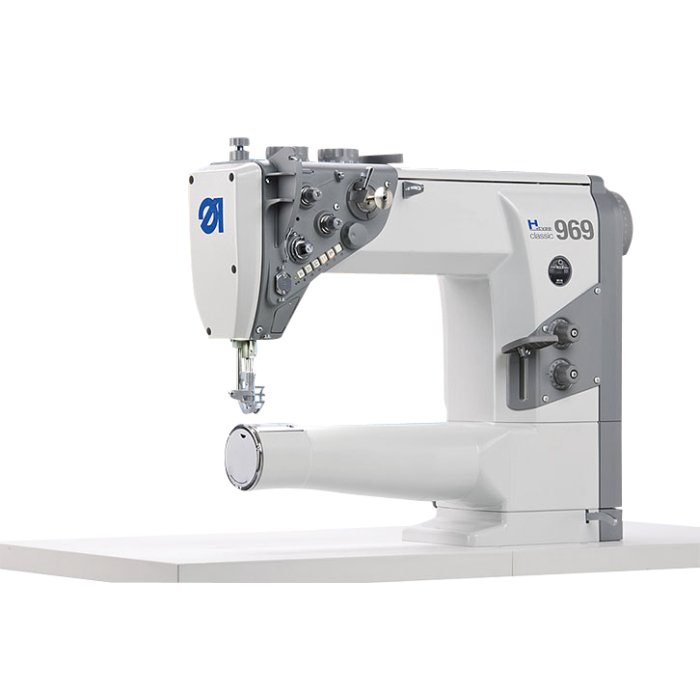

Durkopp Adler 969-190382 CLASSIC

SKU
DA969-190382-CLASSIC

H-TYPE 969 - CLASSIC version of the cylinder arm machine for extreme applications

Field of application:

Universal sewing operations in the production of technical textiles, golf bags etc.



PRICE MATCH GUARANTEE!

We will match any like-for-like quote.



Durkopp Adler 969-190382-CLASSIC

H-TYPE 969 - CLASSIC version of the cylinder arm machine for extreme applications

Field of application:

Universal sewing operations in the production of technical textiles, golf bags etc.

Performance features:

  • Max. stitch length 12mm
  • Thread sizes up to max. Tkt 5/3
  • Max. sewing speed 1,250 stitches/min
  • Max. alternating sewing foot stroke 12mm
  • Max. sewing foot lift 30mm

Overview:

  • Excellent stitch pattern and constantly tight stitches even when sewing with extremely thick threads up to max. Tkt 5/3
  • Equipment features corresponding to the CLASSIC version like thread trimmer, electro-pneumatic sewing foot lift and automatic backtacking
  • Up to 12mm long stitches
  • The extremely high sewing foot lift up to 30mm facilitates the feeding and removal of bulky workpieces
  • The sewing foot stroke up to 12mm allows safe climbing over material plies with large differences in height
  • Large clearance (420mm wide and 225mm high) facilitates the handling of large area workpieces
  • Sewing drive with networkable 'DAC classic' control including operating panel OP1000 - Industry 4.0 ready
  • Optional equipment 'heavy-duty applications': Improved transport, higher tractive force and uniform stitch tightening in very large material thicknesses due to triangular eccentric (max. 800 stitches/min., stitch length max. 9mm; can only be ordered ex works, no external conversion possible)
