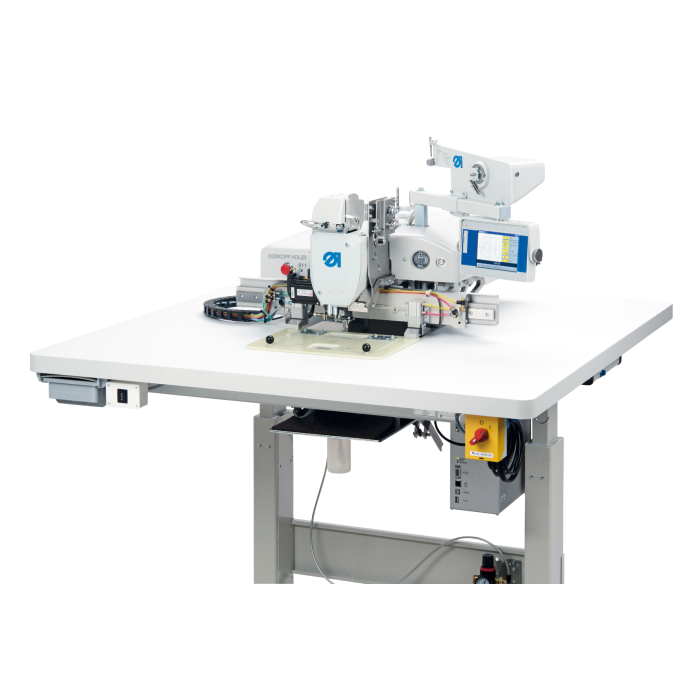

Durkopp Adler 911R-210-3020-10 / 911R-210-6020-10

£0.00 £0.00

SKU

DA911R-210-3020-10/6020-10

911-Revolve - CNC sewing unit with perfect stitching in every sewing direction due to rotation of the stitch-forming components

Medium-heavy applications with high quality expectations on seam quality, e.g. for leather goods, automotive interiors and seating

We will match any like-for-like quote.

911-Revolve - CNC sewing unit with perfect stitching in every sewing direction due to rotation of the stitch-forming components

Field of application:

Medium-heavy applications with high-quality expectations on seam quality, e.g. for leather goods, automotive interiors and seating

Performance features:

Max. sewing length 12.7mm

Max. sewing speed 1,800 stitches/min

Max. sewing foot lifting height 20mm

Overview:

CNC sewing unit with rotating needle bar, hook system and sewing foot

Unlimited rotation of the stitch-forming components around their own axis

Automatic calculation of the optimum position of the needle bar and hook

Remaining thread monitor for the bobbin thread

Sewing area of 300mm x 200mm or 600mm x 200mm (dependant on model)

Exchangeable template for overlapping operation programming or PC programming software (DAC-cad Professional)

Electronic thread tension from optimum stitch formation in all sewing directions

Electronic thread clamping device for neat seam beginning on the upper side of the sewing material

Short remaining thread length and less nesting underneath the material

Programmable sewing foot stroke for processing different material plies

High-quality control unit 'DAC comfort' - Industry 4.0 'ready'

QONDAC equipped (Plug & Play)

Expandable I/O modules available for Poka Yoke applications

Touchscreen control panel 'OP7000'
