Durkopp Adler 911-211-3020-10

£0.00 £0.00

SKU

DA911-211-3020-10

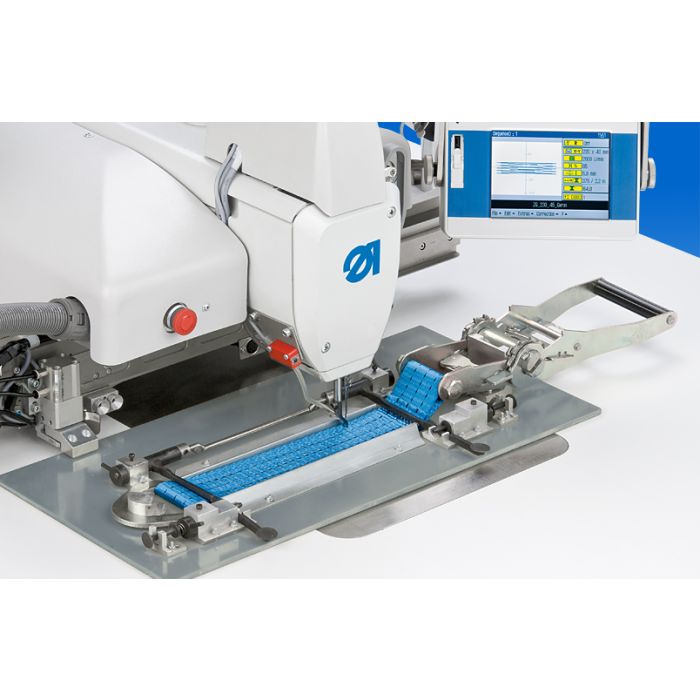

CNC-controlled sewing unit with alternating clamp - sewing field size max. 380 x 200 mm

Automated sewing applications in the field of automotive, technical textiles and leather goods

We will match any like-for-like quote.

CNC-controlled sewing unit with alternating clamp - sewing field size max. 380 x 200 mm

Field of application:

Automated sewing applications in the field of automotive, technical textiles and leather goods

Performance features:

Max. sewing field size 380 x 200 mm

Max. thread size Tkt. 8/3

Memory capacity for 199 seam programs

Overview:

Alternating clamp for overlapping operation

Max. sewing field size 380 x 200 mm

Touch screen operating panel with intuitive user interface

M-TYPE sewing machine head class H867 with attached XY slide system

Creation of seam programs through teach-in programming or PC programming software (DACcad Professional)

Electronic thread tension for optimum stitch formation in all drawing-off directions

Electronic thread clamping device for neat seam beginning on the upper side of the sewing material

Optional thread burner below and above the throat plate

Use of the 3XL hook for high bobbin thread capacity, max. thread size Tkt. 10/3

Programmable sewing foot stroke for processing different material plies

"DAC comfort" control system - prepared for connecting external control systems (Poka Yoke) and networking in a local network
