CNC-controlled sewing unit with alternating clamp for overlapped working method - sewing field size max. 380 x 200 mm
Field of application:
Automated sewing applications in the automotive sector, airbag systems
PRICE MATCH GUARANTEE!
We will match any like-for-like quote.

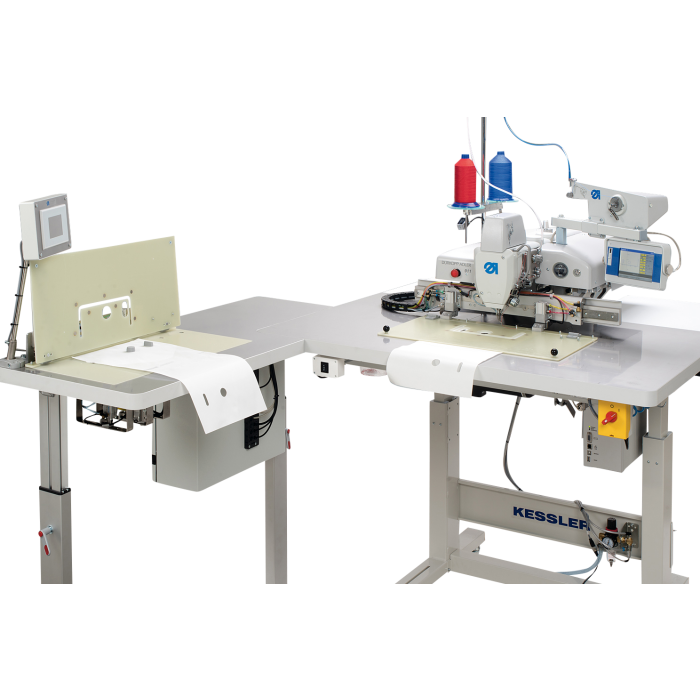

Durkopp Adler 911-210-3020-10 Poka-Yoke
CNC-controlled sewing unit with alternating clamp for overlapped working method - sewing field size max. 380 x 200 mm
Field of application:
Automated sewing applications in the automotive sector, airbag systems
Performance features:
Max. sewing field size 380 x 200 mm
Max. thread size Tkt. 15/3
Memory capacity for 199 seam programs
Overview:
Alternating clamp for overlapping operation
Max. sewing field size 380 x 200 mm
Touch screen operating panel with intuitive user interface
POKA-YOKE system for checking the inserted sewing materials. The position, colour, and total material thickness are checked after the sewing materials are inserted. The system then releases the exchange clamp to perform the seam or locks the exchange clamp if the checkpoints are not positive.
Creation of seam programs through teach-in programming or PC programming software (DACcad Professional)
Electronic thread tension for optimum stitch formation in all drawing-off directions
Electronic thread clamping device for neat seam beginning on the upper side of the sewing material
Optional kit "Neat Seam Beginning (NSB)" guarantees a visually perfect seam beginning with minimised thread quantity on the underside of the fabric
Increased productivity due to the XXL hook
"DAC comfort" control system - prepared for connecting external control systems (Poka Yoke) and networking in a local network
