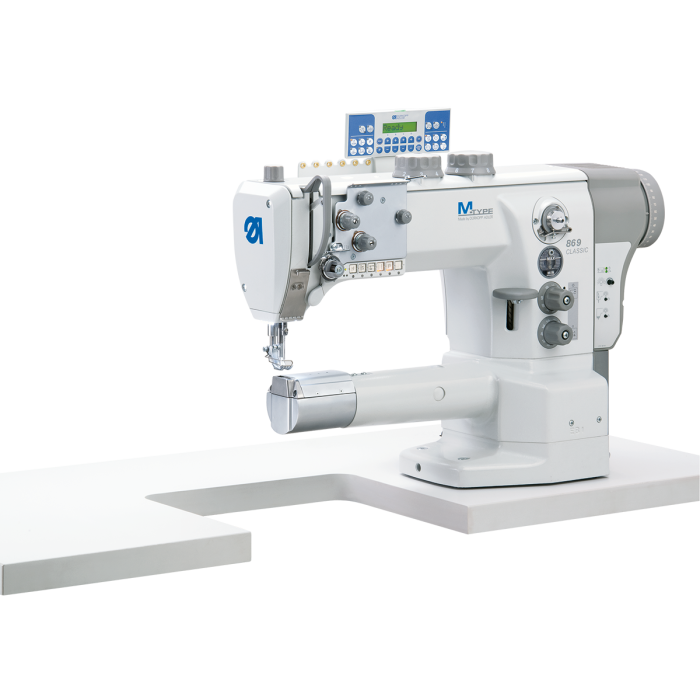

M-TYPE 869-M CLASSIC Goldline - cylinder arm machine with vertical hook
Field of application:
Close to the edge topstitching seams in tubular work pieces
PRICE MATCH GUARANTEE!
We will match any like-for-like quote.
Durkopp Adler 869-180322-M
M-TYPE 869-M CLASSIC Goldline - cylinder arm machine with vertical hook
Field of application:
Close to the edge topstitching seams in tubular work pieces
Performance features:
Thread sizes up to Tkt. 10/3
Max. stitch length 9 mm
Max. sewing speed 2,800 stitches/min.
Overview:
Integrated direct drive with networkable "DAC classic" control incl. operating panel OP1000 - Industry 4.0 "ready"
Hook technology allows the processing of extreme sewing thread sizes up to max. Tkt. 10/3
Disconnectable bottom feed stroke for binding operations
Solid thread trimmer with a remaining thread length of 15 mm only
Excellent stitch pattern, constantly tight stitch formation, even with large stitch lengths and extremely thick thread sizes
The high top feed stroke facilitates sewing over thick spots
The high sewing foot lift facilitates the feeding and removal of bulky workpieces
Lubricating system with adjustable hook lubrication
Equipment features corresponding to the M-TYPE CLASSIC version like thread trimmer, automatic backtracking, pneumatic sewing foot lift, integrated LED sewing lamp and maintenance indicator
Also available as CLASSIC Silverline (869-180122-M)
