Durkopp Adler 867-290342-70-M

£0.00 £0.00

SKU

DA867-290342-70-M

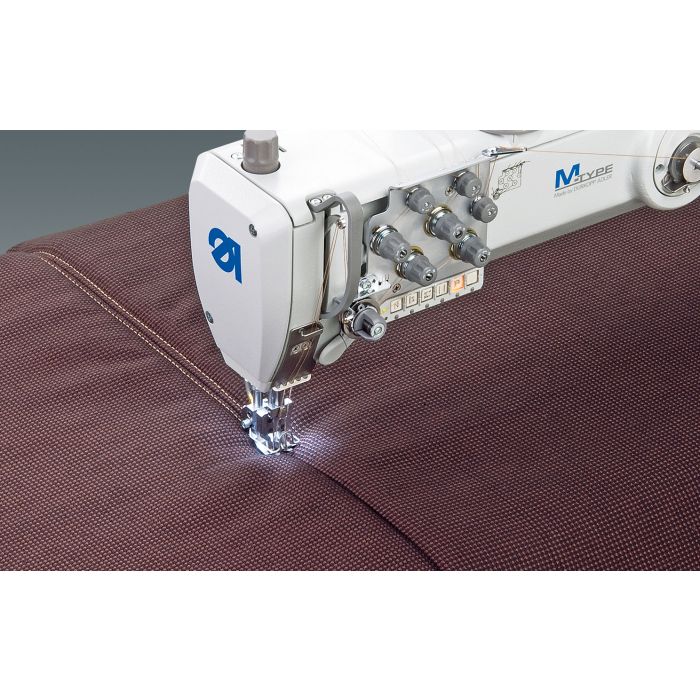

M-TYPE 867-70-M CLASSIC Goldline Long arm - for versatile twin needle operations with XXL hook

Assembly and decorative seams in large workpieces

We will match any like-for-like quote.

M-TYPE 867-70-M CLASSIC Goldline Long arm - for versatile twin needle operations with XXL hook

Field of application:

Assembly and decorative seams in large workpieces

Overview:

Integrated direct drive with networkable "DAC Classic" control incl. operating panel OP1000 - industry 4.0 ready

The large clearance (700mm wide and 125mm high) facilitates the handling of large workpieces

Powerful and effective feeding system with bottom feed, needle feed, and alternating top feed

Up to 12mm long stitches for standard seams and decorative topstitching

The sewing foot stroke up to 9mm enables the safe sewing of materials with large difference in height

Thread sizes up to max. Tkt. 10/3

Increased productivity due to the XXL hook (32mm, 70% higher bobbin capacity in comparison to the standard hook, 26mm)

The conversion of asymmetrical sewing equipment for the twin needle machines enables the flexible use as single needle or twin-needle version

Integrated LED sewing lamp for shadowless lighting of the sewing point

Also available as single needle version (867-190342-70-M)

Also available with L-Hook (26mm) (867-290322-70-M)
