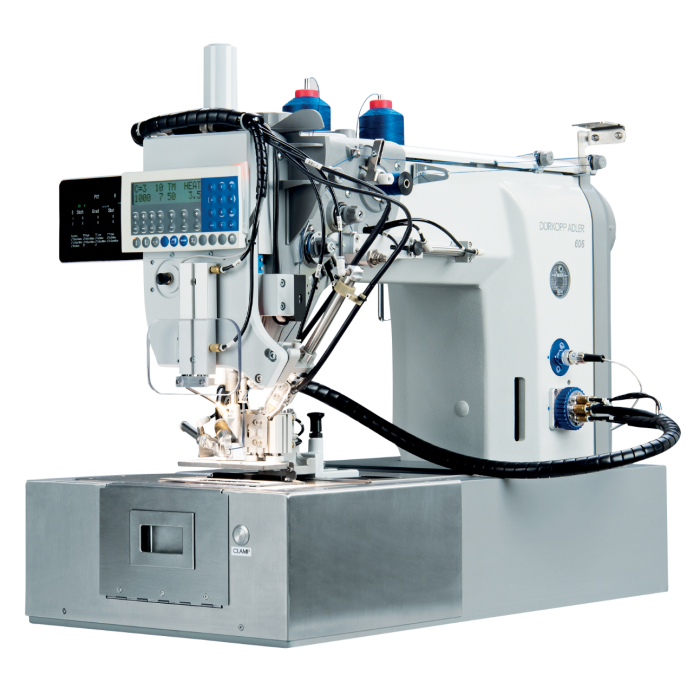

Durkopp Adler 606 PREMIUM

£0.00 £0.00

SKU

DA606PREMIUM

Free programmable small field CNC machine for heavy applications - sewing area of max. 150mm x 110mm

Heavy bartacking applications e.g. safety equipment and heavy belt applications

We will match any like-for-like quote.

Free programmable small field CNC machine for heavy applications - sewing area of max. 150mm x 110mm

Field of application:

Heavy bartacking applications e.g. safety equipment and heavy belt applications

Performance features:

Max. stitch length 20mm

Max. sewing speed 1,200 stitches/min

Max. thread size Tkt. 5/3

Max. template lift 20mm

Overview:

Heavy CNC machine based on the cl. 967 with a maximum sewing area of 150mm x 110mm

Free programmable seam contours are created with the included seam creation PC-software

Barrel shuttle hook for maximum bobbin thread capacity for thick threads

Thread sizes up to Tkt. 5/3

Application-specific templates are perfectly designed and manufactured for the desired application

Quick exchange system for easy change of template sets

Integrated template identification, which only allows the usage of seam programs that were connected to the inserted template

One or two-piece template sets

Thread burner for the upper and lower thread with thread suction for perfectly clean seam ends and short remaining thread ends

Thread catcher for maximum reproducibility of seam beginning

Optional 'Thread Monitoring System' checks the bobbin movement to warn the operator about empty bobbins or skipped stitches

Machine head with built-in motor on base construction for easy integration in automated production lines

Electric height adjustable stand for adjusting the optimum working height
